Description of promotional pallet rack:

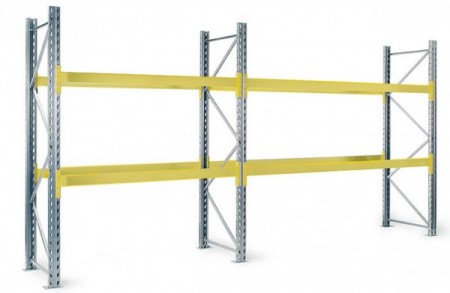

Pallet racking package consisting of a base unit and an add-on unit, each with two storage levels including a base.
The robust galvanized steel construction ensures high stability and excellent value for money.
Thanks to the well-designed plug-in system, assembly is quick and easy.
The yellow, epoxy powder-coated beams (RAL 1004) have a 50 mm spacing and can support up to 3,000 kg per pair.
The maximum bay load is 8,500 kg.
- Traverse dimensions: 2700 x 106 x 45 mm
- Total weight of the promotional display shelf: 175 kg
Available immediately from stock – buy now!

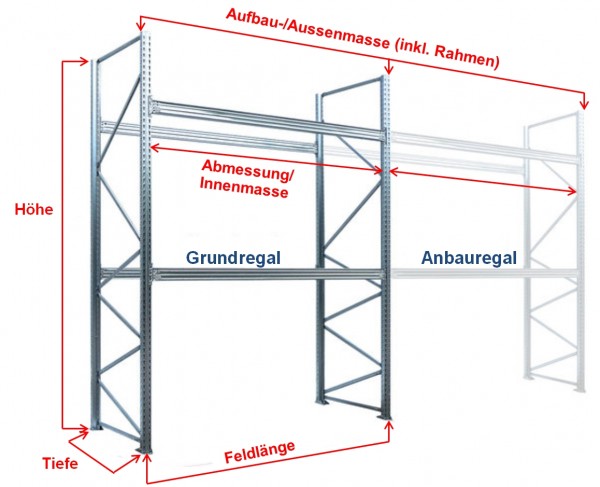

Dimensions/internal dimensions of the promotional pallet rack:
- Height: 2500 mm
- Length: Basic shelf 2700 mm / Add-on shelf 2700 mm = Total 5400 mm
- Depth: 1000 mm
Body/external dimensions (including frame):
- Height: 2500 mm
- Length: Basic shelf 2880 mm / Add-on shelf 2790 mm = Total 5670 mm
- Depth: 1000 mm
Scope of delivery for pallet racking promotion:
- 3 complete shelf frames
- 8 trusses/beams
- 16 release devices
- 6 base plates 98 x 165 mm
- 54 screws M8 x 20 mm + 54 nuts M8
- 12 bolt anchors M10 x 80 mm
